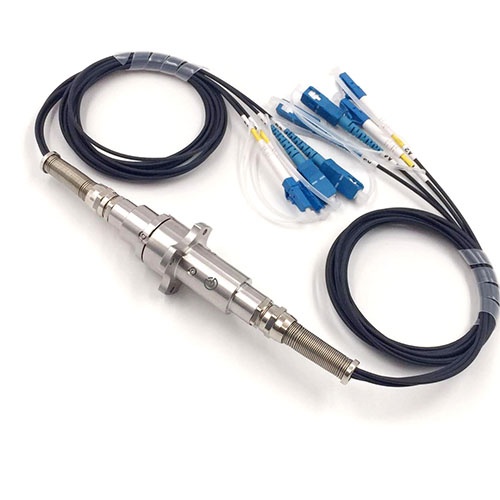

Fiber optic slip rings, also known as optical rotary joints or fiber optic rotary connectors, are used in applications that require the transmission of optical signals across a rotating interface. Unlike traditional electrical slip rings that transmit electrical signals, fiber optic slip rings are designed to handle high-speed and high-bandwidth optical signals while allowing continuous rotation.
Feature
1 channel to 108 channel are for choice
Lower insertion loss, insertion loss ripple, reliable for high data transferring system.
ST,FC,SC,LC,N=None interfaces for option
High power handling ability.
Speed ranges from 0~25000rpm for option
3GF Fiber Optic Rotary Joints Series model list
| Model No | No of Channel | Max OD mm | Optional Mode | Drawings |
| 3GF068-01-XX | 1 | 6.8 | Single mode/Multimode | Technical data |
| 3GF080-01-XX | 1 | 8 | Single mode/Multimode | Technical data |
| 3GF100-01-XX | 1 | 10 | Single mode/Multimode | Technical data |
| 3GF100B-01-XX | 1 | 10 | Single mode/Multimode | Technical data |
| 3GF200-XX-XX | 2~7 | 20 | Single mode/Multimode | Technical data |
| 3GF380-XX-XX | 2~31 | 38 | Single mode/Multimode | Technical data |
| 3GF670J-0X-X | 2~4 | 67 | Single mode/Multimode | Technical data |
| 3GF670-0X-X | 8~31 | 67 | Single mode/Multimode | Technical data |
3GFP High Power Fiber Optic Rotary Joints model list
| Model No | No of channel | Fiber type | Wavelength | Fiber sizes | Connector | Drawings |
| 3GFP100-01-SMW4F1-ST | 1 | SM | 1550nm | 25/400 | ST | Technical data |
| 3GFP100-01-MMW1W2F2-ST | 1 | MM | 650nm &850nm | 105/125 | ST | Technical data |
| 3GFP100-01-MMW1W2F3-ST | 1 | MM | 650nm &850nm | 200/220 | ST | Technical data |
| 3GFP100-01-MMW1W2F4-ST | 1 | MM | 650nm &850nm | 800/1000 | ST | Technical data |
| 3GFP100-01-MMW1W3F2-ST | 1 | MM | 650nm &1064nm | 105/125 | ST | Technical data |
| 3GFP100-01-MMW1W3F3-ST | 1 | MM | 650nm &1064nm | 200/220 | ST | Technical data |
| 3GFP100-01-MMW1W3F4-ST | 1 | MM | 650nm &1064nm | 800/1000 | ST | Technical data |
| 3GFP100-01-MMW2W3F2-ST | 1 | MM | 850nm &1064nm | 105/125 | ST | Technical data |
| 3GFP100-01-MMW2W3F3-ST | 1 | MM | 850nm &1064nm | 200/220 | ST | Technical data |
| 3GFP100-01-MMW2W3F4-ST | 1 | MM | 850nm &1064nm | 800/1000 | ST | Technical data |
| 3GFP100B-01-SMW4F1-ST | 1 | SM | 1550nm | 25/400 | ST | Technical data |
| 3GFP100B-01-MMW1W2F2-ST | 1 | MM | 650nm &850nm | 105/125 | ST | Technical data |
| 3GFP100B-01-MMW1W2F3-ST | 1 | MM | 650nm &850nm | 200/220 | ST | Technical data |
| 3GFP100B-01-MMW1W2F4-ST | 1 | MM | 650nm &850nm | 800/1000 | ST | Technical data |
| 3GFP100B-01-MMW1W3F2-ST | 1 | MM | 650nm &1064nm | 105/125 | ST | Technical data |
| 3GFP100B-01-MMW1W3F3-ST | 1 | MM | 650nm &1064nm | 200/220 | ST | Technical data |
| 3GFP100B-01-MMW1W3F4-ST | 1 | MM | 650nm &1064nm | 800/1000 | ST | Technical data |
| 3GFP100B-01-MMW2W3F2-ST | 1 | MM | 850nm &1064nm | 105/125 | ST | Technical data |
| 3GFP100B-01-MMW2W3F3-ST | 1 | MM | 850nm &1064nm | 200/220 | ST | Technical data |
| 3GFP100B-01-MMW2W3F4-ST | 1 | MM | 850nm &1064nm | 800/1000 | ST | Technical data |
3GFS High Speed Fiber Optical Rotary Joints model list
| Model No | Max OD mm | No of Channel | Fiber type | Wavelength | Fiber sizes | Speed | Drawings |
| 3GFS100-01-XX-X | 10 | 1 | SM /MM |
W1: 650nm
W2: 850nm
W3: 1310nm
W4: 1510nm
|
F1:9/125
F2:50/125
F3:62.5/125
|
A: 2000rpm
B: 5000rpm
C: 10000rpm
D: 15000rpm
E: 20000rpm
F: 25000rpm
|
Technical data |
| 3GFS125-01-XX-X | 12.5 | Technical data | |||||
| 3GFS254-01-XX-X | 25.4 | Technical data |
Here are some examples of where fiber optic slip rings are commonly used:
Telecommunications: Fiber optic slip rings are used in telecommunication systems, especially in applications that involve rotating antennas, satellite communication dishes, or mobile communication towers. They enable the transmission of high-speed data and signals between stationary and rotating parts of the system.
Remote Sensing: Instruments such as remote sensing cameras, LiDAR systems, and weather monitoring equipment often require continuous rotation while transmitting high-resolution optical data. Fiber optic slip rings maintain the integrity of the optical signals during rotation.
Medical Imaging Equipment: Fiber optic slip rings are used in medical devices such as endoscopes, surgical robots, and imaging systems like MRI machines, where precise optical signals need to be transmitted between stationary and moving components.
Underwater Vehicles: Submersibles, remotely operated vehicles (ROVs), and autonomous underwater vehicles (AUVs) utilize fiber optic slip rings to transmit optical data and control signals between the submerged vehicle and the surface equipment.
Aerospace Applications: Fiber optic slip rings are used in aerospace systems that require continuous rotation, such as rotating sensors, cameras, and antennas on aircraft, satellites, and drones. They ensure reliable optical signal transmission during flight.
Military and Defense Systems: Fiber optic slip rings are employed in various military applications, including surveillance systems, reconnaissance equipment, and airborne platforms, where optical data must be transmitted across rotating joints.
Robotics and Automation: In industrial robots and automation systems, fiber optic slip rings are used to enable communication between rotating and stationary parts, allowing for precise control and monitoring.
Scientific Research: Fiber optic slip rings find use in research equipment like telescopes, spectrometers, and particle accelerators, where continuous rotation is necessary for data collection or experiments involving optical signals.
Broadcasting and Entertainment: Broadcasting cameras and equipment that require rotation for capturing events or shows can benefit from fiber optic slip rings to maintain high-quality optical signal transmission.
Renewable Energy: Wind turbines and solar tracking systems can utilize fiber optic slip rings to transmit optical signals for control and monitoring while allowing the rotational movement of the equipment.
Subsea Oil and Gas Industry: Fiber optic slip rings are used in underwater exploration and production systems to enable communication and data transfer between underwater equipment and surface control units.
