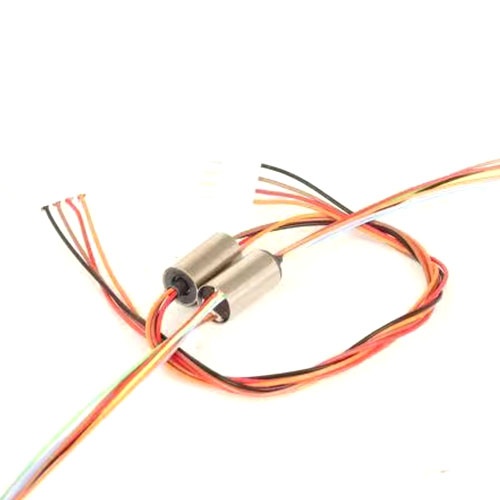

The Super mini capsule slip ring is designed for wearable and portable small and medium-sized equipment that requires 360° rotation; 3GOTEK super mini capsule slip ring adopts military-grade high-standard surface treatment technology and advanced design concept. While solving space problems, It ensures the high precision of the product and ensures the high reliability of the slip ring operation. It has the characteristics of ultra-small size, multi-channel, convenient installation, etc., to meet the demanding space requirements.
Feature
Ultra-miniature series, military quality, suitable for use in high altitude and harsh working environment;
The contact material is gold-to-gold and adopts V-groove design to ensure extremely low resistance fluctuation and long working life.
It has the advantages of low torque, low loss, low electrical noise, and maintenance-free;
Suitable for signal data.
Options
Small Outer diameter start from 4.5mm.
1~12 ways for options
Current ranged from 0.5A ~1A and voltage ranges from 2V~48V
Working speed 0~120rpm for option,
Working temperature range from-60℃~+250℃.
3GS Super mini Capsule Series model list
Model No Current A No of rings Optional Voltage Drawings 3GS079-4 0.5A/signal 4 24V/48V/110V/150V Technical data 3GS085-4 0.5A/signal 4 24V/48V/110V/150V Technical data 3GS055-5 0.5A/signal 5 24V/48V/110V/150V Technical data 3GS079-6 0.5A/signal 6 24V/48V/110V/150V Technical data 3GS085-6 0.5A/signal 6 24V/48V/110V/150V Technical data 3GS084-8 0.5A/signal 8 24V/48V/110V/150V Technical data 3GS065-8 0.5A/signal 8 24V/48V/110V/150V Technical data 3GS045-8 0.5A/signal 8 24V/48V/110V/150V Technical data 3GS100-10 0.5A/signal 10 24V/48V/110V/150V Technical data 3GS105-10 0.5A/signal 10 24V/48V/110V/150V Technical data 3GS074-10 0.5A/signal 10 24V/48V/110V/150V Technical data 3GS072-12 0.5A/signal 12 24V/48V/110V/150V Technical data 3GS065-12 0.5A/signal 12 24V/48V/110V/150V Technical data
Features
Capsule slip rings are used in a variety of industries and applications where space constraints are a concern, and the need for continuous rotation or transfer of signals and power exists. Some common applications of capsule slip rings include:
Security and Surveillance Cameras: In pan-and-tilt cameras used for surveillance, a capsule slip ring can enable the camera to rotate freely while maintaining the connection between the stationary base and the rotating camera head. This allows for continuous monitoring without tangling wires.
Robotics: Miniature slip rings are employed in robotics applications, particularly in robotic arms and joints. They facilitate the transmission of power, control signals, and data between different parts of the robotic system.
Medical Equipment: Capsule slip rings are used in medical devices such as endoscopes and medical imaging equipment, allowing for the rotation of components while maintaining connectivity for lighting, cameras, sensors, and other necessary functions.
Aerospace and Aviation: In aerospace applications, capsule slip rings are used in radar systems, communication antennas, and satellite systems, where the compact design is crucial due to limited available space.
Wind Turbines: Capsule slip rings can be found in wind turbines, enabling the rotation of blades while transmitting signals for control, monitoring, and power distribution.
Packaging Machinery: In packaging equipment like rotary filling machines and labeling machines, capsule slip rings can enable the rotation of parts while maintaining connections for sensors, actuators, and other components.
Automotive Applications: In steering systems, rotary sensors, and rotating displays within vehicles, capsule slip rings are utilized to maintain connectivity while allowing for rotational movement.
Industrial Automation: Capsule slip rings are integrated into various automated systems, such as indexing tables, rotary stages, and conveyor systems, where limited space requires compact yet reliable slip ring solutions.
Military and Defense: Miniature slip rings find applications in military equipment like surveillance turrets, radars, and communication systems, allowing for continuous movement without compromising connectivity.
Entertainment and Broadcasting: In film and television cameras, as well as rotating stages and lighting equipment, capsule slip rings help enable movement while transmitting signals for video, audio, and control.
Overall, capsule slip rings are employed in scenarios where maintaining electrical connections across rotating interfaces is essential while addressing the constraints of limited space.
