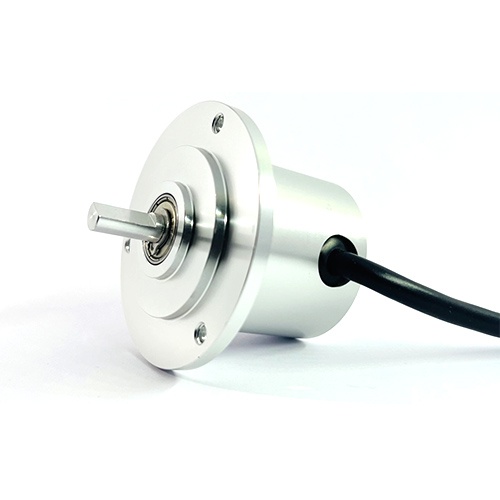

An absolute encoder is a type of rotary or linear position sensor that provides precise information about the absolute position of a shaft or object. Unlike incremental encoders, which only provide information about the change in position, absolute encoders give a unique digital code or value for each position, enabling accurate and immediate position identification. Here's how an absolute encoder works:
Coding Scheme:
Absolute encoders use a binary or gray code system to assign a unique code to each position.
In binary code, each bit represents a position, with each bit representing a power of 2. For example, a 4-bit binary encoder can represent 16 positions (2^4).
Gray code is a variation of binary code where adjacent positions have only one bit difference, reducing the chance of errors during transitions.
Sensor Mechanism:
The encoder consists of a rotating disc attached to the shaft whose position needs to be measured.
This disc is divided into segments, each corresponding to a specific position. The segments are opaque and transparent, or they can have unique reflective patterns.
Light sources (such as LEDs) and photodetectors (such as photodiodes) are placed on either side of the disc. When a transparent segment passes between the light source and photodetector, the light is detected, generating an electrical signal.
Pattern Recognition:
The encoder's electronics process the signals from the photodetectors.
The patterns of opaque and transparent segments passing between the light source and photodetector generate a unique binary or gray code sequence for each position.
Absolute Position Determination:
By decoding the binary or gray code sequence, the electronics determine the absolute position of the shaft.
This position information is then translated into a digital output that represents the actual position of the encoder.
Industries that use absolute encoders include:
Industrial Automation: Absolute encoders are commonly used in CNC machines, robotics, assembly lines, and other automated systems to provide precise position feedback and control.
Aerospace and Aviation: In aircraft systems, including control surfaces, engine components, and navigation systems, absolute encoders offer accurate position data.
Medical Equipment: Medical devices like MRI machines, robotic surgery systems, and patient positioning systems require accurate position feedback, which absolute encoders provide.
Renewable Energy: Wind turbines and solar tracking systems use absolute encoders to monitor the orientation of blades and solar panels for optimal energy capture.
Marine and Shipping: Ship navigation systems, radar antennas, and marine crane operations rely on absolute encoders for accurate positioning.
Automotive Manufacturing: Assembly line robots and equipment in automotive manufacturing use absolute encoders for precise control.
Textile Industry: Textile machinery, such as weaving and spinning machines, use absolute encoders for accurate positioning and control.
Semiconductor Manufacturing: Precision positioning in semiconductor fabrication equipment requires the use of absolute encoders.
Mining and Construction: Equipment like cranes, excavators, and drilling rigs utilize absolute encoders for position feedback.
Material Handling: Conveyors, stackers, and other material handling equipment benefit from absolute encoders for accurate movement and positioning.
Research and Development: In experimental setups requiring precise positioning, absolute encoders are used.
Defense and Military: Defense equipment often requires accurate position feedback for applications such as targeting and surveillance.
These industries and applications demand high accuracy and reliability in position sensing, making absolute encoders a valuable component in various systems.
