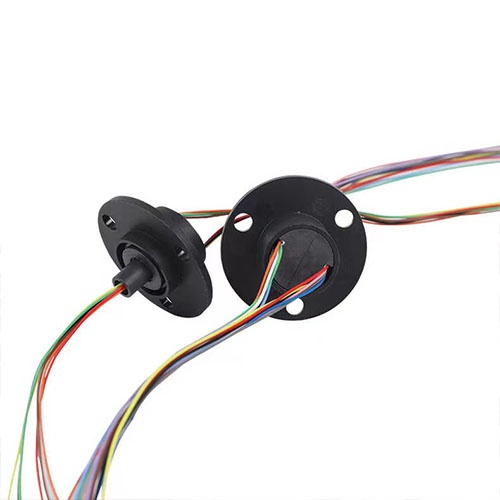

The capsule slip ring is specially designed for small and medium-sized equipment that requires 360° rotation; 3GOTEK capsule slip ring adopts military-grade high-standard surface treatment technology and advanced design concept. While solving space problems, It ensures the high precision of the product and ensures the high reliability of the slip ring operation. It has the characteristics of ultra-small size, multi-channel, convenient installation, etc., to meet the demanding space requirements.
Feature
Maintenance-free
Small size, compact structure, long life.
Using military-grade surface treatment technology
Gold-to-gold contacts
Small contact resistance
Low electrical noise
Smooth operation
Small torque
High stability
Options
Small Outer diameter start from 18mm.
1~250 ways for options
Current ranged from 2A ~80A and voltage ranges from 2V~10000V
Working speed 0~20000rpm for option,
Working temperature range from-60℃~+500℃.
Capable to handling signals:
Ethernet: 10Mbps, 100Mbps, 1000Mbps
Industrial Ethernet: Sercos III, Powerlink, ProfiNet, EtherCAT, Ethernet/IP, Modbus/TCP, etc.
Fieldbus: Profibus, DeviceNet, CC-Link, CAN, InterBus, FF, LonWorks, HART, WorldFIP, ControlNet, etc.
Serial communication: RS232, RS485, RS422, etc.
HD video: SDI, LVDS, HD-BaseT, etc.
3GC Capsule Series model list
Model No Current A No of rings Optional Voltage Drawings 3GC220-3P2 10 3 110V/220V/240V Technical data 3GC220-3P3 15 3 110V/220V/240V Technical data 3GC220-3P6 30 3 110V/220V/240V Technical data 3GC220-6 2 6 110V/220V/240V Technical data 3GC220-6-1 2 6 110V/220V/240V Technical data 3GC220-6-2 2 6 110V/220V/240V Technical data 3GC220-6-3 2 6 110V/220V/240V Technical data 3GC220-6-4 2 6 110V/220V/240V Technical data 3GC220-8 2 8 110V/220V/240V Technical data 3GC220-8-1 2 8 110V/220V/240V Technical data 3GC220-8-2 2 8 110V/220V/240V Technical data 3GC220-12 2 12 110V/220V/240V Technical data 3GC220-12-1 2 12 110V/220V/240V Technical data 3GC220-12-2 2 12 110V/220V/240V Technical data 3GC220-12-3 2 12 110V/220V/240V Technical data 3GC220-12-4 2 12 110V/220V/240V Technical data 3GC220-12-5 2 12 110V/220V/240V Technical data 3GC180-12 2 12 110V/220V/240V Technical data 3GC180-11 2 12 110V/220V/240V Technical data 3GC220-18 2 18 110V/220V/240V Technical data 3GC220-18-1 2 18 110V/220V/240V Technical data 3GC220-18-2 2 18 110V/220V/240V Technical data 3GC220-18-3 2 18 110V/220V/240V Technical data 3GC220-18-4 2 18 110V/220V/240V Technical data 3GC220-24 2 24 110V/220V/240V Technical data 3GC218-24 2 24 110V/220V/240V Technical data 3GC220-30 2 30 110V/220V/240V Technical data 3GC220-36 2 36 110V/220V/240V Technical data 3GC248-36 2 36 110V/220V/240V Technical data 3GC250-56 2 56 110V/220V/240V Technical data 3GC250-56-1 2 56 110V/220V/240V Technical data 3GC355-76 2 76 110V/220V/240V Technical data 3GC540-125 2 125 110V/220V/240V Technical data
Features
Capsule slip rings are used in a variety of industries and applications where space constraints are a concern, and the need for continuous rotation or transfer of signals and power exists. Some common applications of capsule slip rings include:
Security and Surveillance Cameras: In pan-and-tilt cameras used for surveillance, a capsule slip ring can enable the camera to rotate freely while maintaining the connection between the stationary base and the rotating camera head. This allows for continuous monitoring without tangling wires.
Robotics: Miniature slip rings are employed in robotics applications, particularly in robotic arms and joints. They facilitate the transmission of power, control signals, and data between different parts of the robotic system.
Medical Equipment: Capsule slip rings are used in medical devices such as endoscopes and medical imaging equipment, allowing for the rotation of components while maintaining connectivity for lighting, cameras, sensors, and other necessary functions.
Aerospace and Aviation: In aerospace applications, capsule slip rings are used in radar systems, communication antennas, and satellite systems, where the compact design is crucial due to limited available space.
Wind Turbines: Capsule slip rings can be found in wind turbines, enabling the rotation of blades while transmitting signals for control, monitoring, and power distribution.
Packaging Machinery: In packaging equipment like rotary filling machines and labeling machines, capsule slip rings can enable the rotation of parts while maintaining connections for sensors, actuators, and other components.
Automotive Applications: In steering systems, rotary sensors, and rotating displays within vehicles, capsule slip rings are utilized to maintain connectivity while allowing for rotational movement.
Industrial Automation: Capsule slip rings are integrated into various automated systems, such as indexing tables, rotary stages, and conveyor systems, where limited space requires compact yet reliable slip ring solutions.
Military and Defense: Miniature slip rings find applications in military equipment like surveillance turrets, radars, and communication systems, allowing for continuous movement without compromising connectivity.
Entertainment and Broadcasting: In film and television cameras, as well as rotating stages and lighting equipment, capsule slip rings help enable movement while transmitting signals for video, audio, and control.
Overall, capsule slip rings are employed in scenarios where maintaining electrical connections across rotating interfaces is essential while addressing the constraints of limited space.
