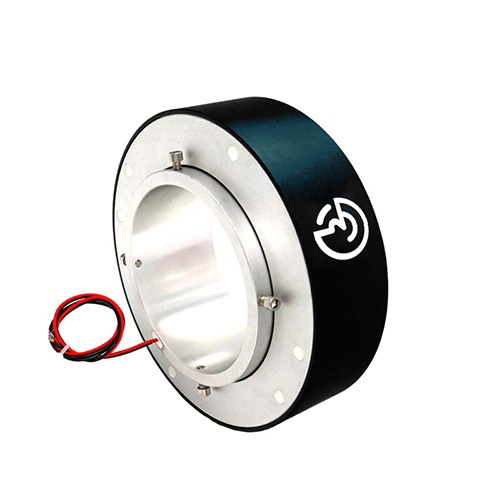

Through-hole slip ring structure has a central hole, which issued to pass through the transmission shaft, pipe, wire, and can also be used to integrate various joints such as optical fiber, high frequency, encoder, and gas-hydraulic swivel. While transmitting the power signal, it can also pass through various signals such as Ethernet, USB, HDMI, SDI, Canbus, profibus, etc. A slip ring can meet the needs of a system with various functions.
After years of R&D and design, 3GOTEK has accumulated rich design experience in various complex working environment projects such as high altitude, high temperature, low temperature, underwater, vacuum, etc., and can quickly design high and low temperature, shockproof, anti-corrosion, waterproof, explosive and other products according to customer needs. fully meet the special needs of different customers.

Features

Optic, HF, RF, Air, Liquid and Oil rotary joint can be integrated
Suitable for signal as below:
Thermal resistance: PT10, PT50, PT100, PT1000, etc.
Thermocouple: K, J, N, E, S, R and B type, etc.
Sensor Signals: Transmission of all types of sensor and encoder signals with minimal loss
Short-distance low-speed communication signals: I2C, SPI, I2S, UART, TTL, etc.
Ethernet: 10Mbps, 100Mbps, 1000Mbps
Industrial Ethernet: Sercos III, Powerlink, ProfiNet, EtherCAT, Ethernet/IP, Modbus/TCP, etc.
Fieldbus: Profibus, DeviceNet, CC-Link, CAN, InterBus, FF, LonWorks, HART, WorldFIP, ControlNet, etc.
Serial communication: RS232, RS485, RS422, etc.
HD video: SDI, LVDS, HD-BaseT, etc.

3GH180 Series model list

Model No	Current A	No of rings	Optional Voltage	Drawings
3GH180-2P1	5	2	110V/220V/240V/380V/440V/690V	Technical data
3GH180-3P1	5	3	110V/220V/240V/380V/440V/690V	Technical data
3GH180-6P1	5	6	110V/220V/240V/380V/440V/690V	Technical data
3GH180-12P1	5	12	110V/220V/240V/380V/440V/690V	Technical data
3GH180-18P1	5	18	110V/220V/240V/380V/440V/690V	Technical data
3GH180-24P1	5	24	110V/220V/240V/380V/440V/690V	Technical data
3GH180-30P1	5	30	110V/220V/240V/380V/440V/690V	Technical data
3GH180-36P1	5	36	110V/220V/240V/380V/440V/690V	Technical data
3GH180-42P1	5	42	110V/220V/240V/380V/440V/690V	Technical data
3GH180-48P1	5	48	110V/220V/240V/380V/440V/690V	Technical data
3GH180-60P1	5	60	110V/220V/240V/380V/440V/690V	Technical data
3GH180-72P1	5	72	110V/220V/240V/380V/440V/690V	Technical data
3GH180-84P1	5	84	110V/220V/240V/380V/440V/690V	Technical data
3GH180-96P1	5	96	110V/220V/240V/380V/440V/690V	Technical data
3GH180-108P1	5	108	110V/220V/240V/380V/440V/690V	Technical data
3GH180-2P2	10	2	110V/220V/240V/380V/440V/690V	Technical data
3GH180-3P2	10	3	110V/220V/240V/380V/440V/690V	Technical data
3GH180-6P2	10	6	110V/220V/240V/380V/440V/690V	Technical data
3GH180-12P2	10	12	110V/220V/240V/380V/440V/690V	Technical data
3GH180-18P2	10	18	110V/220V/240V/380V/440V/690V	Technical data
3GH180-24P2	10	24	110V/220V/240V/380V/440V/690V	Technical data
3GH180-30P2	10	30	110V/220V/240V/380V/440V/690V	Technical data
3GH180-36P2	10	36	110V/220V/240V/380V/440V/690V	Technical data
3GH180-6P3	15	6	110V/220V/240V/380V/440V/690V	Technical data
3GH180-12P3	15	12	110V/220V/240V/380V/440V/690V	Technical data
3GH180-18P3	15	18	110V/220V/240V/380V/440V/690V	Technical data
3GH180-24P3	15	24	110V/220V/240V/380V/440V/690V	Technical data

Rotary Indexing Tables: In manufacturing and automation processes, rotary indexing tables are used to position and rotate workpieces for various operations. Through bore slip rings can be integrated into these tables to provide electrical signals, data transmission, or fluid connections to rotating tools or sensors.
Cable Reels: Through bore slip rings are commonly used in cable reel systems, such as those used in cranes, elevators, and cable-driven devices. The slip ring allows power, control signals, and communication cables to remain connected as the cable reel rotates.
Pan-and-Tilt Cameras: Through bore slip rings are utilized in surveillance and inspection systems where cameras or sensors need to pan and tilt while maintaining continuous communication with stationary equipment.
Wind Turbines: Wind turbine systems often incorporate through bore slip rings to transmit electrical power, signals, and data between the stationary base and the rotating blades or nacelle.
Radar Systems: Through bore slip rings can be found in radar installations where the rotating antenna requires continuous electrical connections for transmitting and receiving signals.
Packaging Machinery: Packaging machinery, such as rotary fillers and label applicators, may utilize through bore slip rings to maintain connections for sensors, motors, and other components that need to rotate with the machinery.
Medical Imaging Equipment: In medical applications like MRI machines, through bore slip rings can enable the rotation of imaging equipment while maintaining data connections for image acquisition and patient monitoring.
Construction Equipment: Construction machinery with rotating components, such as concrete pumps or drilling rigs, can benefit from through bore slip rings to enable continuous operation and connectivity.
Entertainment and Theme Parks: Through bore slip rings are used in amusement park rides and attractions, allowing for continuous rotation of ride components while maintaining power and communication connections.
Robotics and Automation: In robotics applications, through bore slip rings can provide power, control signals, and data connections to rotating robotic arms or end-effectors.
Through bore slip rings are chosen in applications where the passage of wires, cables, fibers, or fluids through the center of a rotating assembly is essential for maintaining proper functionality and operation. Their design ensures that these connections are preserved during continuous rotation, making them invaluable in a wide range of industries and applications.
