Hollow shaft slip rings

Products

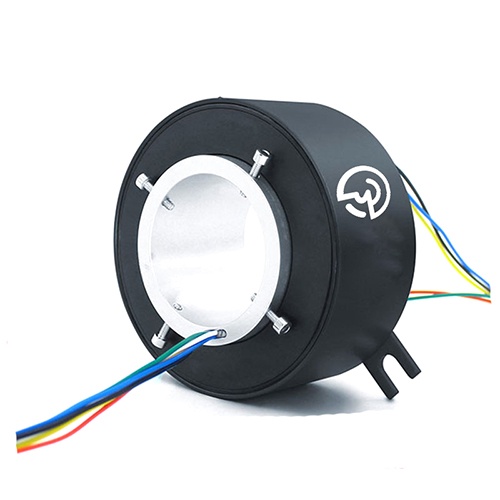

Hollow shaft slip rings

Product No.:3GH100

Series::3GH100 series slip rings

Optional current::5A/10A/15A/20A

Optional voltage::110V/220V/240V/380V/440V/690V

Optional No. of Ways::2~108 Ways

Inner Diameter::100mm

Optional IP sealing:IP51,IP65,IP67,IP68

Working temperature::-20~+60℃

Wire length::250mm

Working speed::0~250rpm

  • Details

Through-hole slip ring structure has a central hole, which issued to pass through the transmission shaft, pipe, wire, and can also be used to integrate various joints such as optical fiber, high frequency, encoder, and gas-hydraulic swivel. While transmitting the power signal, it can also pass through various signals such as Ethernet, USB, HDMI, SDI, Canbus, profibus, etc. A slip ring can meet the needs of a system with various functions.
After years of R&D and design, 3GOTEK has accumulated rich design experience in various complex working environment projects such as high altitude, high temperature, low temperature, underwater, vacuum, etc., and can quickly design high and low temperature, shockproof, anti-corrosion, waterproof, explosive and other products according to customer needs. fully meet the special needs of different customers.



Features

Optic, HF, RF, Air, Liquid and Oil rotary joint can be integrated
Suitable for signal as below:
Thermal resistance: PT10, PT50, PT100, PT1000, etc.
Thermocouple: K, J, N, E, S, R and B type, etc.
Sensor Signals: Transmission of all types of sensor and encoder signals with minimal loss
Short-distance low-speed communication signals: I2C, SPI, I2S, UART, TTL, etc.
Ethernet: 10Mbps, 100Mbps, 1000Mbps
Industrial Ethernet: Sercos III, Powerlink, ProfiNet, EtherCAT, Ethernet/IP, Modbus/TCP, etc.
Fieldbus: Profibus, DeviceNet, CC-Link, CAN, InterBus, FF, LonWorks, HART, WorldFIP, ControlNet, etc.
Serial communication: RS232, RS485, RS422, etc.
HD video: SDI, LVDS, HD-BaseT, etc.


3GH100 Series model list

Model No Current A No of rings Optional Voltage Drawings
3GH100-2P1 5 2 110V/220V/240V/380V/440V/690V Technical data
3GH100-3P1 5 3 110V/220V/240V/380V/440V/690V Technical data
3GH100-6P1 5 6 110V/220V/240V/380V/440V/690V Technical data
3GH100-10P1 5 10 110V/220V/240V/380V/440V/690V Technical data
3GH100-12P1 5 12 110V/220V/240V/380V/440V/690V Technical data
3GH100-18P1 5 18 110V/220V/240V/380V/440V/690V Technical data
3GH100-20P1 5 20 110V/220V/240V/380V/440V/690V Technical data
3GH100-24P1 5 24 110V/220V/240V/380V/440V/690V Technical data
3GH100-30P1 5 30 110V/220V/240V/380V/440V/690V Technical data
3GH100-36P1 5 36 110V/220V/240V/380V/440V/690V Technical data
3GH100-40P1 5 40 110V/220V/240V/380V/440V/690V Technical data
3GH100-42P1 5 42 110V/220V/240V/380V/440V/690V Technical data
3GH100-48P1 5 48 110V/220V/240V/380V/440V/690V Technical data
3GH100-50P1 5 50 110V/220V/240V/380V/440V/690V Technical data
3GH100-60P1 5 60 110V/220V/240V/380V/440V/690V Technical data
3GH100-70P1 5 70 110V/220V/240V/380V/440V/690V Technical data
3GH100-72P1 5 72 110V/220V/240V/380V/440V/690V Technical data
3GH100-80P1 5 80 110V/220V/240V/380V/440V/690V Technical data
3GH100-84P1 5 84 110V/220V/240V/380V/440V/690V Technical data
3GH100-96P1 5 96 110V/220V/240V/380V/440V/690V Technical data
3GH100-108P1 5 108 110V/220V/240V/380V/440V/690V Technical data
3GH100-2P2 10 2 110V/220V/240V/380V/440V/690V Technical data
3GH100-3P2 10 3 110V/220V/240V/380V/440V/690V Technical data
3GH100-6P2 10 6 110V/220V/240V/380V/440V/690V Technical data
3GH100-12P2 10 12 110V/220V/240V/380V/440V/690V Technical data
3GH100-18P2 10 18 110V/220V/240V/380V/440V/690V Technical data
3GH100-24P2 10 24 110V/220V/240V/380V/440V/690V Technical data
3GH100-30P2 10 30 110V/220V/240V/380V/440V/690V Technical data
3GH100-36P2 10 36 110V/220V/240V/380V/440V/690V Technical data
3GH100-42P2 10 42 110V/220V/240V/380V/440V/690V Technical data
3GH100-48P2 10 48 110V/220V/240V/380V/440V/690V Technical data
3GH100-6P3 15 6 110V/220V/240V/380V/440V/690V Technical data
3GH100-12P3 15 12 110V/220V/240V/380V/440V/690V Technical data
3GH100-18P3 15 18 110V/220V/240V/380V/440V/690V Technical data
3GH100-24P3 15 24 110V/220V/240V/380V/440V/690V Technical data
3GH100-30P3 15 30 110V/220V/240V/380V/440V/690V Technical data
3GH100-36P 3 15 36 110V/220V/240V/380V/440V/690V Technical data
3GH100-42P3 15 42 110V/220V/240V/380V/440V/690V Technical data
3GH100-48P3 15 48 110V/220V/240V/380V/440V/690V Technical data
3GH100-6P4 20 6 110V/220V/240V/380V/440V/690V Technical data
3GH100-12P4 20 12 110V/220V/240V/380V/440V/690V Technical data
3GH100-18P4 20 18 110V/220V/240V/380V/440V/690V Technical data
3GH100-24P4 20 24 110V/220V/240V/380V/440V/690V Technical data
3GH100-30P4 20 30 110V/220V/240V/380V/440V/690V Technical data
3GH100-36P 3 20 36 110V/220V/240V/380V/440V/690V Technical data
3GH100-42P4 20 42 110V/220V/240V/380V/440V/690V Technical data
3GH100-48P4 20 48 110V/220V/240V/380V/440V/690V Technical data



Typical applications:
Rotary Indexing Tables: In manufacturing and automation processes, rotary indexing tables are used to position and rotate workpieces for various operations. Through bore slip rings can be integrated into these tables to provide electrical signals, data transmission, or fluid connections to rotating tools or sensors.
Cable Reels: Through bore slip rings are commonly used in cable reel systems, such as those used in cranes, elevators, and cable-driven devices. The slip ring allows power, control signals, and communication cables to remain connected as the cable reel rotates.
Pan-and-Tilt Cameras: Through bore slip rings are utilized in surveillance and inspection systems where cameras or sensors need to pan and tilt while maintaining continuous communication with stationary equipment.
Wind Turbines: Wind turbine systems often incorporate through bore slip rings to transmit electrical power, signals, and data between the stationary base and the rotating blades or nacelle.
Radar Systems: Through bore slip rings can be found in radar installations where the rotating antenna requires continuous electrical connections for transmitting and receiving signals.
Packaging Machinery: Packaging machinery, such as rotary fillers and label applicators, may utilize through bore slip rings to maintain connections for sensors, motors, and other components that need to rotate with the machinery.
Medical Imaging Equipment: In medical applications like MRI machines, through bore slip rings can enable the rotation of imaging equipment while maintaining data connections for image acquisition and patient monitoring.
Construction Equipment: Construction machinery with rotating components, such as concrete pumps or drilling rigs, can benefit from through bore slip rings to enable continuous operation and connectivity.
Entertainment and Theme Parks: Through bore slip rings are used in amusement park rides and attractions, allowing for continuous rotation of ride components while maintaining power and communication connections.
Robotics and Automation: In robotics applications, through bore slip rings can provide power, control signals, and data connections to rotating robotic arms or end-effectors.
Through bore slip rings are chosen in applications where the passage of wires, cables, fibers, or fluids through the center of a rotating assembly is essential for maintaining proper functionality and operation. Their design ensures that these connections are preserved during continuous rotation, making them invaluable in a wide range of industries and applications.
